Automatic Flatbed Corrugated Box Die Cutting Machine
Functions and Features

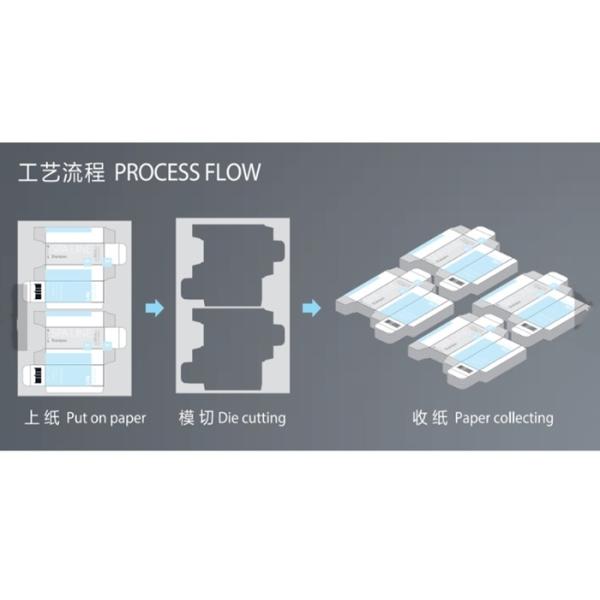

1300/1500/1600/1900 automatic flatbed corrugated box die cutting machine with stripping station is pivotal equipment, which is designed for die cutting, creasing and cold embossing paper products such as paper cassettes, box board containers, paper clutch.
Overpower protection, electric compression relief, etc. to ensure stable and high speed running of the machine.
Automatic flatbed corrugated box die cutting machine is equipped with practical and reliable mechanisms such as pre-stack device, secondary feeding device, speedy changing paper feeding mechanism, automatic secondary delivery mechanism, pneumatic sampling, automatic timing lubricating device, cooling facility for oil etc. Which ensure the excellent performance of the machine.
Electrical components and driving elements of internationally known brands are adopted to ensure die cutting precision and reliability of running.
The combination of feeding technology of European die cutting machine and lead edge feeding features of high-speed flexo printing machine, newly designed lead edge feeder with precise feeding system will provide more accurate and positive feeding than ever.
Sheet feeding grid height adjustable according to sheet quality and thickness for smooth and precise feeding.
| PARAMETER |
| Model | JCS-PYP-A1300 | JCS-PYP-A1500 | JCS-PYP-A1650 | JCS-PYP-A1900 |
| Max. sheet size | 1290*940mm | 1500*1100mm | 1650*1210mm | 1900*1400mm |
| Min. sheet size | 470*420mm | 470*420mm | 550*500mm | 650*450mm |
| Max. die cutting size | 1280*920mm | 1480*1080mm | 1620*1180mm | 1870*1380mm |
| Min.gripper margin | 6-12mm | 6-12mm | 6-12mm | 6-12mm |
| Min.gripper waste | 12mm | 12mm | 12mm | 12mm |
| Cutting rule height | 23.8mm | 23.8mm | 23.8mm | 23.8mm |
| Inner chase size(mm) | 1310x970 | 1520x1330 | 1650x1230 | 1900x1430 |
| Sheet size | ≤8.5mm | ≤8.5mm | ≤8.5mm | ≤8.5mm |
| Max. working pressure | 300ton | 300ton | 400ton | 450ton |
| Max. working speed | 5500s/h | 5500s/h | 5500s/h | 5500s/h |
| Total power | 25kw | 20kw | 38kw | 38kw |
| Electrical power | 380V,50HZ,3PH | 380V,50HZ,3PH | 380V,50HZ,3PH | 380V,50HZ,3PH |
| Air pump displacement | 1.05m3/MIN,12kg/cm2--(prepared by user) |
| Pressure adjusting range | ±1.5mm | ±1.5mm | ±1.5mm | ±1.5mm |
| Machine dimension(mm) | 7400x4400 x2300 | 8000x4600 x2300 | 8400x5000 x2500 | 9000x5800 x2500 |
| Machine weight | 19ton | 20ton | 32ton | 38ton |
|
|
Automatic Flatbed Corrugated Box Die Cutting Machine Images
|
